9″ DVR Monitor 5CH Realtime Vehicle Reversing Recording CCD Camera Kit Truck Bus
$840.00
Rear-view mirrors allow drivers to view a large portion of the area behind their vehicles. However, trunks and rear decks often limit the view of the road as much as ten to 15 feet behind the vehicle. Sometimes you simply can’t see these things in your conventional rear view mirror. The rear view cameras feature is an invaluable piece of technology that assists drivers in several ways. The best backup cameras eliminate dangerous blind spots. This makes backing out of the driveway much safer Rear-view cameras, also known as “reversing cameras” or “backup cameras,” resolve this problem. These cameras enable drivers to see objects and people directly behind their vehicles. Rear view cameras make parking, driving and backing up a safer experience for everyone. If you are in the market for this type of product, we highly recommend that you purchase one of the fine products we have researched and reviewed.
Description
HIGH-END BUILT-IN DVR FOR VEHICLE EQUIPMENT VISION SECURITY SYSTEM
9″ DIGITAL QUAD SCREEN 5CH MONITOR SUPPORT UPTO
64GB SD CARD
MONITOR
Screen size: 9 inch digital screen
Resolution: 800RGB(H)*480(V)
System: PAL/ NTSC
Brightness: 400cd/m
Contrast: 16.66736111
Operating: Voltage DC12V~32V
Operating Temperature: -20degree~70degree
MENU: OSD MENU Function
Video inputs: Four way video inputs
DVR Function: Ability to record 5 separate cameras at the same time, Take pictures, Archive Player
Memory: 64GB support upto
Features: With light sensor.With sunshade. The keystroke with LED blue light
CAMERA
1. Sensor > Sharp 1/4” CCD Image Sensor
2. TV System > PAL (AU) NTSC
3. Effective Pixels > 512 (H) x 582 Pixels 512 x 492 Pixels
4. Resolution > 480 TV Line
5. Sync System > Internal
6. Sensing System > 2.1 Interface
10. Minimum illumination > 0.2 Lux/F 1.8 (0 Lux With LED ON)
11. IR Switch State > <10 Lux CDS ON
12. IR Switch Control > CDS Automatic Control
13. S/N Ratio > More Then 48db
14. Video Output > 1.0 Vp-p,75ohm
15. Electronic Shutter Time > Auto PAL :1/60-1/15000 sec
16. Operation Temperature > -20°C ~ 75˚C ( RH 95% Max)
17. Storage Temperature > -30°C ~ 85˚C ( RH 95% Max)
18. Lens > 2.8mm/120deg
19. Gain Control > Automatic
20. White Balance > Automatic
21. Current Consumption > No more then 300 mA
22. Power Supply > 12V/24V
23. Function > With Night Vision
24. Waterproof > IP 67- IP 68
25. Weight > 300g
26. Dimension > 77mm (W) x 55mm (D) x 90mm (H)
AV, Photograph, Video Record Function ( the recording file stored in SD card, maximum 64GB, supporting 9-10 hours continuous recording ,when play the videotape, 5 minutes is a segment, support date & time setting of the video. )
AV2/AV3/AV4 with trigger wire, once trigger wire activated, i mage automatically switch over to corresponding camera, and take picture soon.
Appearance and Keystroke function:
Remote Control Instruction:

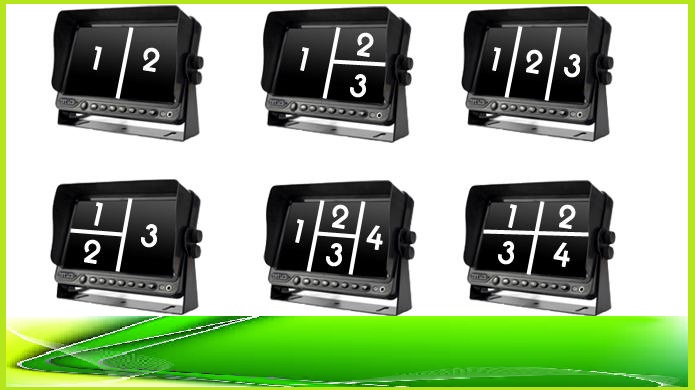

Image Mode:
The monitor can show single, dual, triple, quad image if you switch over AV button (when connecting with 4 cameras)
Menu Operation Instruction:
Press “MENU” on remote, screen will show “PICTURE”. Press ” ▼ ▲” to select other feature. Press “◀▶” to move left / right. Press “MENU” over and over again will show pictures as below.
Wiring Instruction:
PART 2: Camera (It an be used for side view cameras, can also be used for

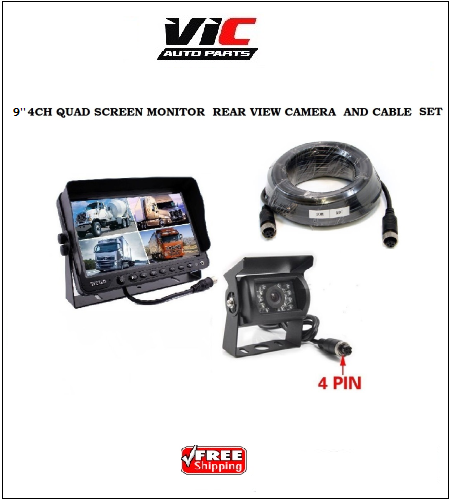

PACKAGE INCLUDES:-
1 x 9 Inch DVR Monitor (64GB up to support)
1x Power Cord
1x Remote Control
1x User Manual
1 x Mount Bracket (screws and nut)
1x 4 Pin Camera
1x 10m 4 Pin Cable
